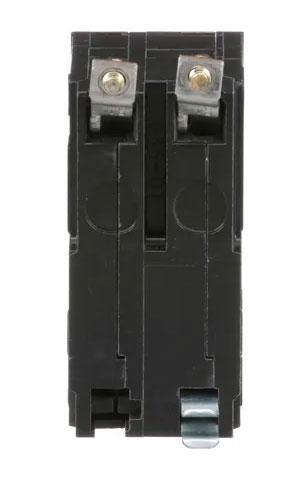

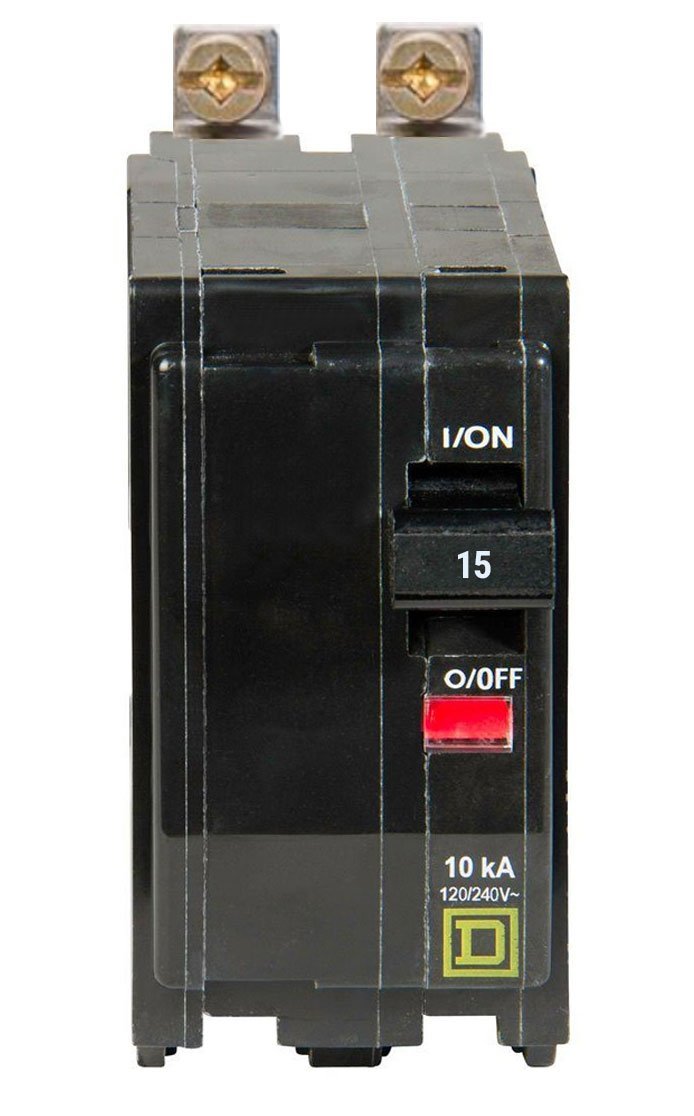

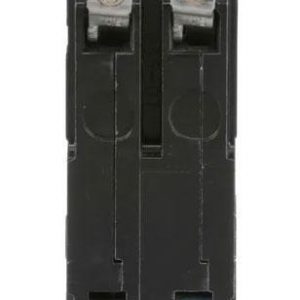

QOB215 – Square D 15 Amp Double Pole Bolt-On Circuit Breaker
Square D miniature circuit breaker has a voltage rating of 120/240 Volts current rating of 15 Amps and interrupting rating of 10 kilo-Amps. The 2-Pole thermal magnetic circuit breaker features a lug terminal and accommodates aluminum/copper wire size of 14 – 8 AWG. It has bolt on mounting and provides protection against over current.
Specifications:
- Product: Miniature circuit-breaker
- Range: QO
- Line Rated Current: 15 A
- System Voltage: 120 V AC, 120/240 V AC, 48 V DC
- Mounting Type: Bolt-on
- Number of Poles: 2P
- Circuit Breaker Type: Standard
- Ratings: HACR rated
- Electrical Connection: Pressure plate
- Number of Panel Spaces: 2
- Wire Size: AWG 14…AWG 8 (copper or aluminium)
- Height: 3 in
- Depth: 2.91 in
- Width: 1.5 in
- Ambient Rating: 104 Degree F (40 Degree C)
- Authentic Schneider Electric / Square D Product
- Dimensions (H x W x L): 3″ x 1.5″ x 2.91″
